Solar Air Heat Exchanger -Liquid to Air - 60 BTU

$210.60

Sold Out
Ask a question

Water to Air Heat Exchanger for Forced Air Funances

 12"x12" 60,000 BTU

Solar Air to Liquid heat exchanger

Solar Air to Liquid Heat Exchanger

12" x 12" Air to water heat exchanger are a great fit for a variety of heating and cooling applications. These compact units are designed to maximize heat transfer by utilizing a series of 3/8" copper tubes with a high density of aluminum fins. These fins are spaced such that the fin density is 12 fins per inch. This design enables heating loads of 50,000-60,000 Btu per square foot (please see performance chart below). Despite such high fin density there is minimal flow resistance through these coils.

These units fit in the Furnace and use the solar hot water to transfer the solar heat through out the house.

Download Product Specification PDF

Features of the Air to Water Heat Exchanger:

Materials Tube Coil 36" Seamless Copper
- Plate Fin Aluminum
- Core Housing Galvanized Steel
- Header Copper
Rating: Tubeside 175 psig/350F
Plate Fin Spacing 12/inch -
All Connections 1" ID Solder -



Features of the Air to Water Heat Exchanger:

  • Tube Coil is manufactured entirely of 3/8" seamless copper.
  • Plate Fin is made from Aluminum.
  • The core housing is made from galvanized steel.
  • Header is made from Copper and has a 1" ID.
  • The Tubeside is rated at 175 psig/350F.
  • Plate Fin Spacing is 12 per inch.
  • All connections are 1 inch ID Solder

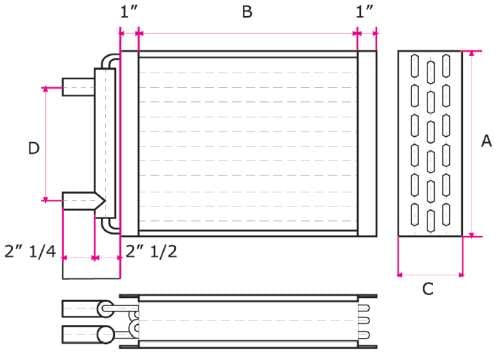

Dimensional Table

Model

-

-

-

-

-

-

-

-

Dimensions in

-

-

-

-

-

-

-

-

-

A

B

C

D**

HTL12 x 12

CFM

Ent-Water

500

600

700

800

900

1016

12

12

3.5

7 3/4



pd in.wc

T(F)

0.145

0.155

0.165

0.175

0.185

0.195









Based on

Load

140

28080

29160

34171

36115

37325

38400









6 gpm

in

160

35978

37362

43782

46273

47822

49200









pd 0.49psi

BTU/h

180

43875

45563

53392

56430

58320

60000











Return Policy

We want you to be 100% satisfied with your purchase, if you are not, ship it back to us in the original packaging condition and we will refund your purchase less a 10% restocking fee, provided the equipment is received in good condition. Refund offer valid for 30 days from receipt of product.

Warranty

We feel that being honest is a much better policy to win your trust rather than trying to lure you with nearly impossible statements such as lifetime warranty. Nothing lasts forever! Our warranty policy is simple; we offer a 3 year warranty on everything we sell and 10 years on our collectors. With this warranty you will get NO hassle next business day replacement (if shipping service and inventory permits). However, as a valued customer you will get technical support through the lifetime ownership of your product. Our Collector do carry longer warranties 10 years from the manufacture. The warranty cover failures that occur during normal operational conditions or manufactures defects. It does not cover failure due to inappropriate operation such as freezing or over heat. Damage caused by vandalism, storms, floods etc. Your houshold insurance should be modified to cover the system from such situations.



We accept PayPal and Credit card (Visa or Mastercard). If you are ordering multiple units and part, please call us to see if we can save you shipping cost for multiple item orders.

PayPal

For complete solar kits please allow 2-3 weeks delivery. These kits are shipped via our preferred freight forwarder company and where possible we will schedule residential tailgate delivery (curbside). Heaters and accessories are usually in stock unless indicated otherwise. We do have expedited shipping services available for an additional fee. Please call us if you need a rush order. Once your order has been shipped you will be contacted via email and a tracking number will be provided.



Sold Out


  • Model: N-50
  • Shipping Weight: 10lbs
  • 0 Units in Stock
  • Manufactured by: Valutech

This product was added to our catalog on Wednesday 08 September, 2010.
