Solar Brazed Plate Heat Exchanger - 50 Plates 300K BTU

Solar Brazed Plate Heat Exchanger - 50 Plates 300K BTU

N-104

Stainless Steel Copper Brazed Plate Heat Exchanger 50 Plates - BL 14-50 Northern Lights Solar Solutions Plate Heat Exchangers - BL 14-50. Our Brazed Plate heat exchanger consists of 50 multiple, thin, slightly-separated  corrugated plates that togeth Read More
  • Shipping Weight: 5kgs
  • Manufactured by: Baode Heat Exchangers
0 Units in Stock
$168.18
 Sold Out

Stainless Steel Copper Brazed Plate Heat Exchanger

50 Plates - BL 14-50

solar heat exchanger brazed copper large

solar heat exchanger brazed copper large

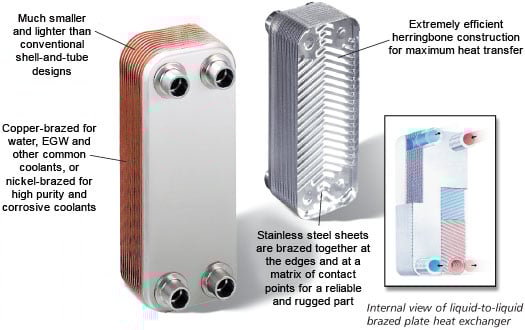

Northern Lights Solar Solutions Plate Heat Exchangers - BL 14-50. Our Brazed Plate heat exchanger consists of 50 multiple, thin, slightly-separated  corrugated plates that together form a very large relative surface area given the volume of these heat exchangers.  They produce relatively low pressure drops and operate efficiently at the lower flow rates associates with solar and hydronic circulation systems.  The stacked-plate arrangement can be more effective, in a given space, than most other type of heat exchangers. These Solar Brazed Plate Exchangers have a specially patented "wafer or corrugated " stamps that increase the flow turbulence and consequently the heat transfer and scaling factor making them ideal in solar application which have smaller flow rates.

Our  line of brazed plate heat exchangers are single wall stainless steel versions.  Some codes require double water heat exchangers with visible leak detection for potable domestic water where a double wall heat exchanger is required.  We have two sizes; a 30 plate and a 50 plate version. The smaller 30 plate unit is suitable for up to 8 solar collectors and the larger unit is used when the solar collectors exceeds 8 such as commercial solar application or in applications were a low differential temperature gradient is needed.

The entire construction is sealed together by the means of brazing in a special vacuum furnace..



Applications:

• SOLAR HEATING
Central Heating
Heating and Cooling in HVAC installations
Hydraulic and Lube Oil Coolers
Tap Water and Radiator Heating
Hydronic Heating
Geothermic and Solar Heating
Evaporation and Condensation in Refrigeration Systems
Heat Recovery
Steam Heating
District or Zone Heating Systems



The Outstanding Features:


Compact structure and easy installation
Light in weight
Small consumption of water
Outstanding Overall Heat Transfer Coefficient
Wide Variety of plate sizes and Patterns
Durable
Stainless Steel
Low scaling coefficient

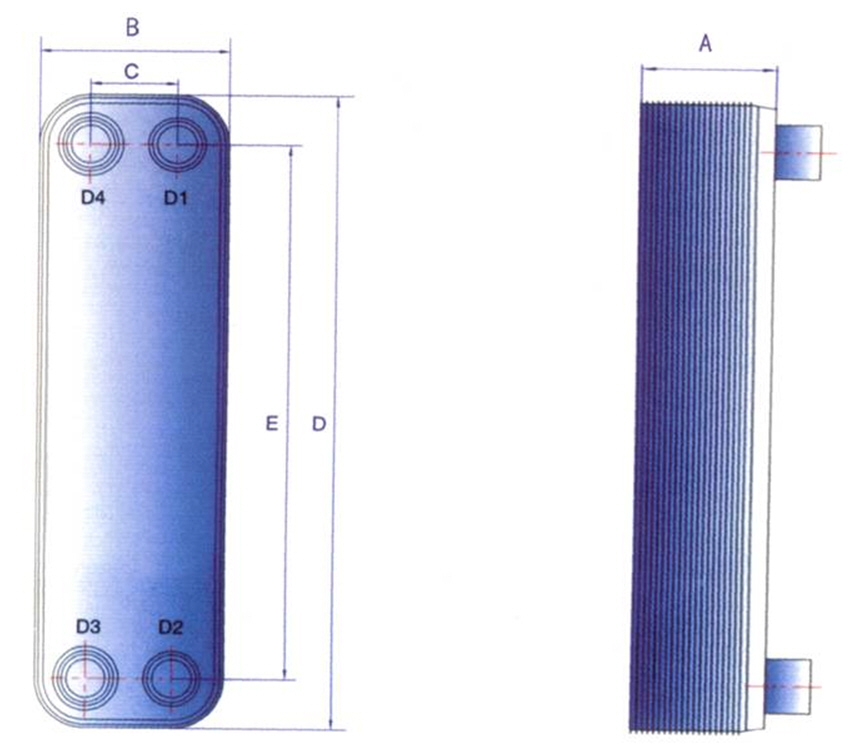

Dimensions



Overall Dimensions

(Dx B x A)



 BL 14-50     3.15 x 7.5 x 4.85"

C=1.57" ; E=6.06"

Port Connections 316L

3/4" male NPT - load side (left D3 & D4)

3/4" male NPT -solar side (right D1 & D2)

Max Design Pressure

435 PSI

Design Temperature

200 °C  or 392 °F

Plate Material

316 L Stainless Steel

Brazing Material

Copper

Heat Transfer Rating
BL 14-50 = 300 kBTU/hr (88 kW)
Design Delta T for Rated BTU 60 °K  or 108 °R
Heat Transfer Area BL 14-50 = 0.672 m2 (7.2 ft2)
Pressure Drop (both sides with water)  8psi @15USGPM
Liquid Retension
BL 14-50 = 0.48L (.13 USGAL)

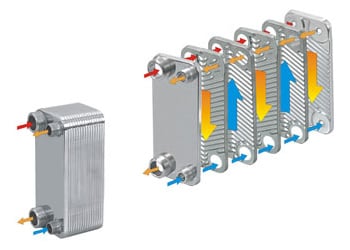

solar heat exchanger flow
