SunRain Mini Solar Pump Station -120 VAC

SunRain Mini Solar Pump Station -120 VAC


  SunRain Solar Pump Station   SunRain - Integrated pump station with Wilo Star S16 3-speed solar pump Complete solar control system including solar working station with drain fi Read More
  • Shipping Weight: 5kgs
  • Manufactured by: SunRain
16 Units in Stock

SunRain Solar Pump Station

SunRain Pump Station

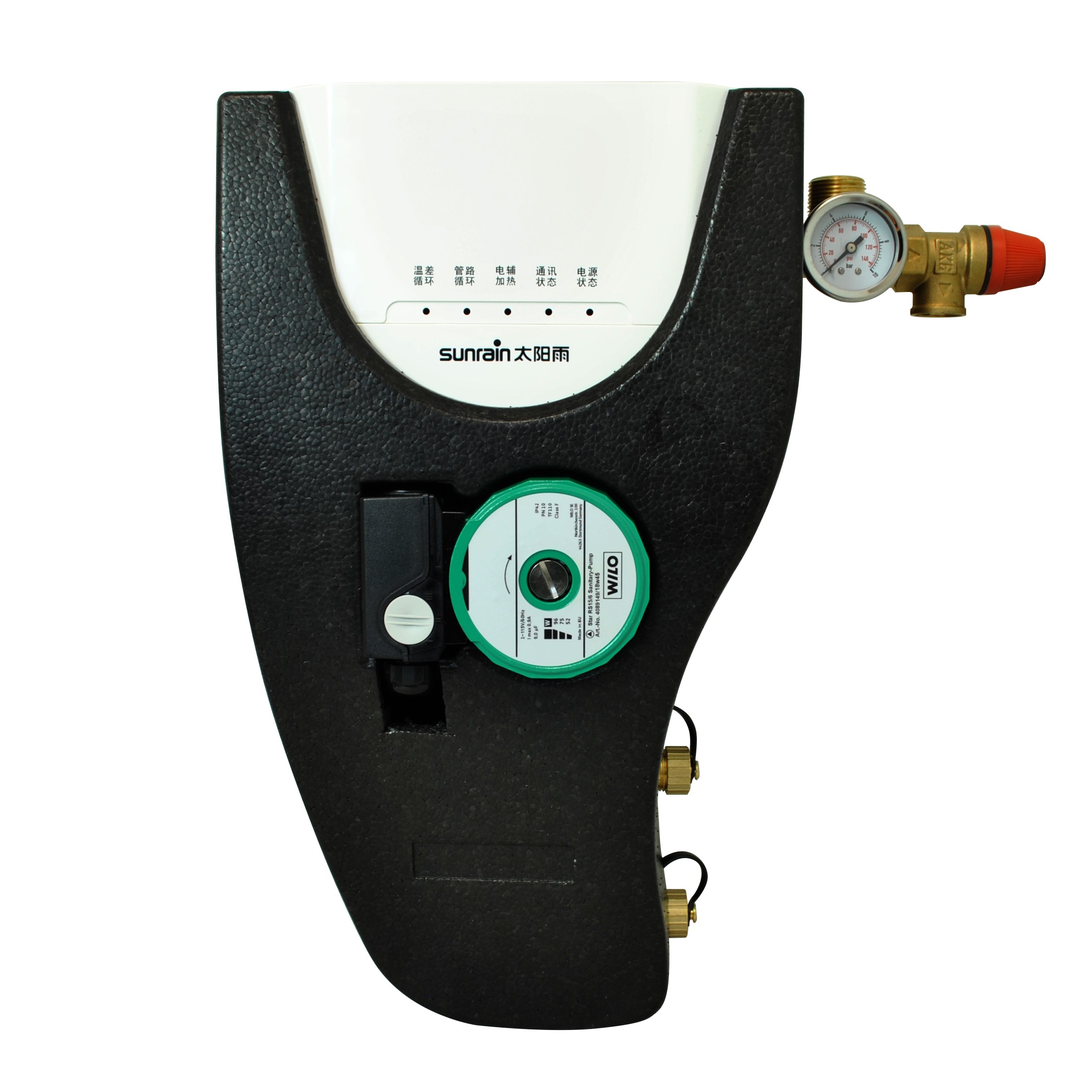

SunRain - Integrated pump station with Wilo Star S16 3-speed solar pump

Complete solar control system including solar working station with drain fill valves and shut off isolation valves. Flow meter, pressure release valve, pressure gauge, temperature gauge, and Wilo Star16 3-speed pump included. Quality brass components are high temperature rated. Note: Requires Solar Controller - comes with 1/2" ftp compression connections.

USE in closed loop design only. The circulation unit is used on the primary circuit of solar heating systems to control the temperature in the hot water storage. The pump inside the unit is activated by the signal from the differential temperature controller (sold separately). In addition, this unit contains the functional and safety devices for optimum circuit control.

SunRain Pump Station Open


• All medium-bearing parts are made of brass
• All connections 1/2 female ftp
• With Pre-assembled steel wall bracket, with the PAW-mounting set to be installed directly to the tank
• Full port ball valve in return pipe is noise-free, low pressure drop, manual opener for faster line drain service, spring-actuated - special design for solar thermal applications
• Large ball valve handles for easy grip, and visible closing position
• Function-optimized design insulation made of durable elastic EPP; 100% insulation of the fittings - excellent pump ventilation and cooling
• Solar safety assembly Pressure relief valve 86 PSI high-temperature manometer 0 - 90 PSI with Drain valve for flushing and filling, flat sealing connection for expansion tank
• Fully assembled with flat sealing union connections at most joints
• Flushing and draining unit integrated Two drain valves (at the Flow meter and at the safety group) enable the filling and flushing of the system
• Wilo Star 3 speed pump S16 with 16 feet of head capacity
