Ultra Thin Hydronic Fan Coil - Heating & Cooling - Water Radiator - 080-C



Ultra Thin Hydronic Fan Coil - Heating & Cooling - Water Radiator - 080-C

N-456

Phnix Ultra Thin Water Fan Coils for Hydronic Heating and Cooling   Model PFP-080-C Requires SIN or Tax ID for shipping to USA    Fan Coils provide a modern hydronic heating and cooling solution with superior energy effici Read More
  • Shipping Weight: 158kgs
  • Manufactured by: Arctic Heat Pumps
22 Units in Stock
$1,272.26


Phnix Ultra Thin Water Fan Coils for Hydronic Heating and Cooling



Model PFP-080-C

Requires SIN or Tax ID for shipping to USA


Phnix fan coil 080-C

Fan Coils provide a modern hydronic heating and cooling solution with superior energy efficiency.  Compared with traditional radiators you can save over 30% in energy consumption. Combine that with a high energy efficient hydronic heat pump, such as an Arctic Heat Pump, and the savings are tremendous. Modern day hydronic heating means using lower supply water temperatures to capture the energy savings. The 080-C is capable of heating with supply water temperatures as low as 110 F.

Ultra sleek and modern design allow these fan coils to be placed nearly anywhere and unlike older radiators the ultra quiet fan mixes the room air providing a much more even heat distribution. Built in condensate drain allows for summer cooling and dehumidification. Touch button control with automatic fan speed selection and auto heat/cool allow you to easily manage the comfort of any room. A convenient remote is included allowing control of the unit from anywhere in the room.

How does it work -When a heating or cooling call is needed the Fan Coil will send a dry contact signal back to a pump relay to activate the hydronic circulation pump.  The pump will either supply hot water in the winter or cold chilled water in the summer to the fan coil. When using multiple fan coils it is recommend to run them in parallel using a manifold and variable speed constant pressure pump such as the Grundfos Alpha2.

080-C Fan Coil

Phnix Ultra Thin Fan Coils

• Super quiet under 30 Db
• Ultra Thin Fan Coil Casing only 130 mm (5.12") wide
• High Efficiency with integrated fan you can save 30% compared with other radiators
• Easy Installation - Wall mount, floor mount
• Smart Control with built in thermostat - Remote controller included
• Cooling and Heating in one unit - Ideal for Air to Water Heat Pumps
• Individual Room Zoning provides superior comfort over central air.

Phnix Fan Coil DisplayPhnix Fan Coil Vent

Multiple Units Require Zone Valving Actuators

Ivar 24V actuator

IVAR Actuator - 24V - 4 Wire Telestat Switch

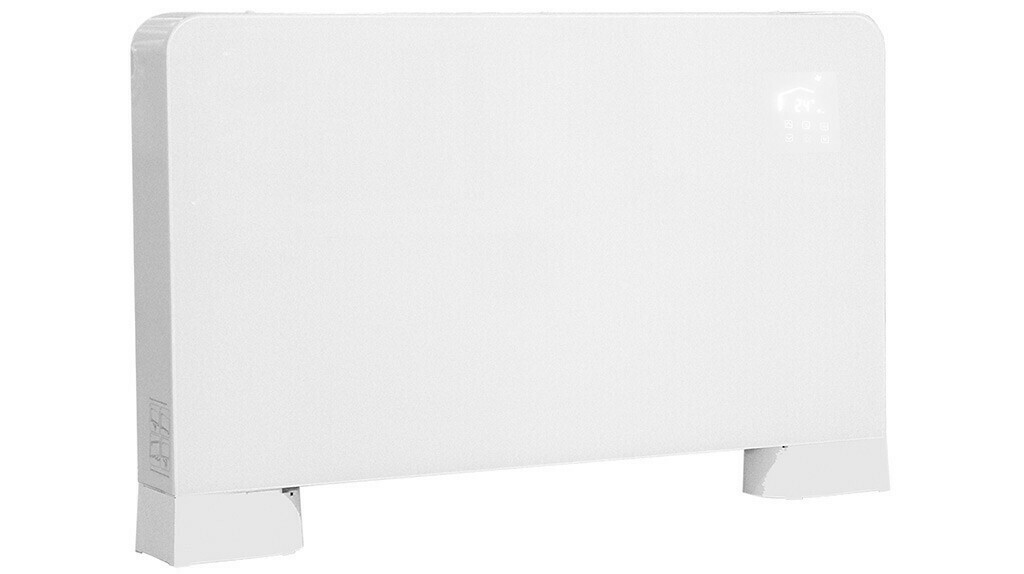

Phnix Fan Coil with legs



SPECIFICATIONS

Model

PFP-025-C

PFP-040-C

PFP-060-C

PFP-080-C

PFP-100-C

Heating Capacity* (Btu/h) 3,600 6,900 9,200 11,800 14,300
Heating Capacity** (Btu/h) 4,600 8,500 11,400 14,600 17,800
Heating Capacity*** (Btu/h) 6,680 10,500 15,300 19,720 25,500
Cooling Capacity* (Btu/h) 3,400 6,500 8,500 12,000 14,800
Power Supply (V/Ph/Hz) 110 - 120 V / 1 Ph / 60Hz
Air Volume (CFM) 94 188 270 341 383
Max. Noise (dBA) 30 32 37 39 41
Net Dimensions (H x W x D) (in) 26 x 28 x 5 26 x 35 x 5 26 x 43 x 5 26 x 51 x 5 26 x 59 x 5
Shipping Dimensions (H x W x D) (in) 29 x 29 x 7 29 x 37 x 7 29 x 45 x 7 29 x 53 x 7 29 x 61 x 7

*Heating: Ambient temp. (DB) 70°F, Water temp. (In/Out): 113°F/ -
**Heating: Ambient temp. (DB) 70°F, Water temp. (In/Out): 122°F/ -
***Heating: Ambient temp. (DB) 70°F, Water temp. (In/Out): 140°F/ -
*Cooling: Ambient temp. (DB) 80°F/67°F, Water temp. (In/Out): 45°F/55°F

1 years manufacturer's warranty.

fan coil   Fan Coil

fan coil parts



Typical Fan Coil Installation Design Using Buffer Tank

fan coil installation
