Adjustable Mounting kit for SunRain Solar Collectors

Adjustable Mounting kit for SunRain Solar Collectors

N-60

Adjustable Mounting Kit for SunRain Collectors Collector Not Included One of the most important features of SunRain Vacuum Tube collectors is the design and flexibility in mounting options. With the adjustable mounting kit option you can virtually mount the Read More
  • Shipping Weight: 20kgs
  • Manufactured by: SunRain
119 Units in Stock
$129.42

Adjustable Mounting Kit for SunRain Collectors

Collector Not Included

One of the most important features of SunRain Vacuum Tube collectors is the design and flexibility in mounting options. With the adjustable mounting kit option you can virtually mount the SunRain collectors to any building at any angle.

solar angle of inclination

Depending on the type of Solar heating, it is important to correctly select the angle of inclination to maximize the solar output.

For winter heating applications you will want a steeper angle as the sun in lower in the horizon. However for summer heating applications such as pool heating you will want a flatter angle of inclination as the sun is higher in the horizon.







Adjustable Frame Option

multiple mounting angles
Having a frame system that can accommodate various installation angles is very important. SunRain 'adjustable frame option' features the most flexible frame system on the market with the ability to select any angle of inclination.

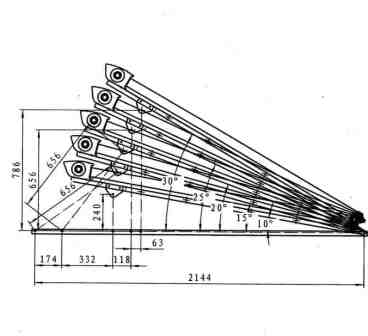

The Frames can be mounted from 10 degrees all the way to 70 degrees and any inclination angle in between. The 2" "C" channel design allows the customer to easily move the mounting angle to optimize the solar collector based on their location and the season.





Adjustable Frame (Optional)
30 degree solar mount 45 degree solar mount 70 degrees

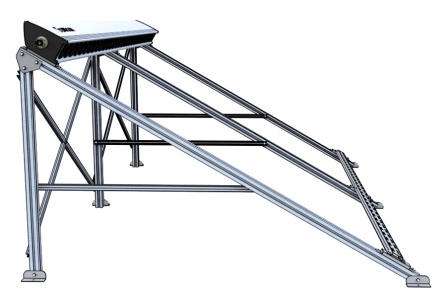

 30 degress

45 degrees

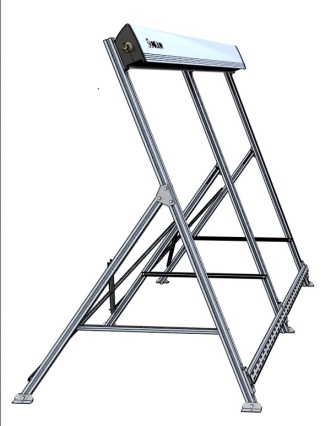

70 degrees





 adjustable frame mount ground mount solar stand

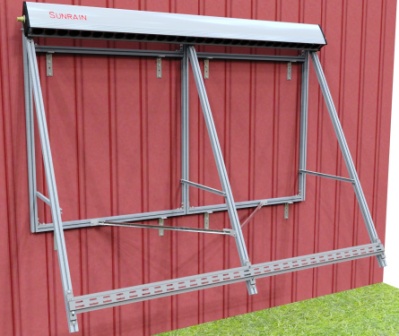

 Adjustable Frame option on Wall

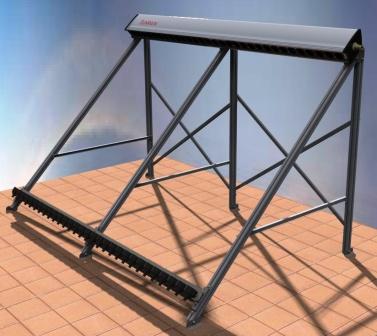

 Adjustable Frame option on Roof

Adjustalble Frame option on Ground



NOTE This Frame kit is only suited for SunRain Collectors can not be used with other Solar Collectors or PV panels.  Collector Manifold show in pictures is not included with frame kit
