Solar Piping - Aurora Flex 3/4\" Solar Insulated Pipe DIN20

Solar Piping - Aurora Flex 3/4" Solar Insulated Pipe DIN20

N-257

      Aurora Flex Solar 3/4" Stainless Steel Piping -DIN20 with 3/4" EPM insulation Stainless Steel SUS 304 (3/4" OD & 5/8" ID) solar piping with high temp 3/4" EPDM insulation and weather proof coating. Include Read More
  • Shipping Weight: 90kgs
  • Manufactured by: NLSS
25 Units in Stock
$562.50







Aurora Flex Solar 3/4" Stainless Steel Piping -DIN20

with 3/4" EPM insulation

Aurora Flex Pipe

Stainless Steel SUS 304 (3/4" OD & 5/8" ID) solar piping with high temp 3/4" EPDM insulation and weather proof coating. Includes silicon wire for temperature probe. Guarantees a professional installation in 1/4 the time it would take to do a copper installation. No leaks and no soldering! 100 feet per roll.   Each carton contains 1 x 100 ft coil.

FEATURES

• No Soldering- Leak FREE
• ?3/4" 304 Stainless Steel pipes

Aurora Flex Pipe
Installation Procedure


Step one:
Cut the hose to your desired length with cutter
Step two:
Put a fitting onto the solar hose, put one end into flange tool NOTE Flange tool sold separately
Step three:
Use a hammer to flatten the end of the hose
Step four:
squeeze on the Solar hose stainless steel Circlip on
Step five:
Insert high Temperature gasket
Step six:
Tighten with a crescent wrench until gasket is tightly sealed

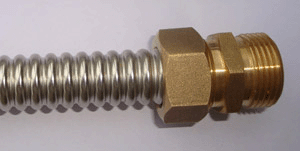

High Pressure/ High Temperature Fittings





No.
Item
Material
1
Nut Brass
2
Metal Hose
SUS304,SUS316L
3

Gasket

350?Ž High-temperature resistance seal
4

Cir-Clip

Stainless Steel SUS304





Technical specifications



INSULATION
Material High quality synthetic elastomer (EPDM based) with a complete closed-cell structure.
Temperature range From -50 C to +150 C     (up to 175 C operating intermittent.)
Flammability :actual burning behavior DIN 4102-B2 self-extinguishing, no fireball drops, limited fire spreading
Water Vapor permeability u>3000
Thermal Conductivity W/(m.K)

  R 4.8 (.035 W/mk)

JACKETING
Material UV resistant and high mechanical resistant protective film
UV Resistance Excellent UV and weather resistant properties
TEMPERATURE SENSOR WIRE
Temperature Range from -50 C to +200 C
Flexible Copper 0.75mm2
Wire Insulation Silicon
Rated Voltage 300/500 V
Electric Resistance 23.0 Ohm/km
