Solar Pool Heat Exchanger- Stainless Steel -155K


Solar Pool Heat Exchanger- Stainless Steel -155K

N-288

  SOL-SP-155K Pool Heat Exchanger - Stainless Steel       SP-155K Pool and Hot Tub Heat Exchanger. Featuring high efficiency Heat Transfer Capabilities. Smooth tube and shell design ensures high velocities inside t Read More
  • Shipping Weight: 4kgs
  • Manufactured by: Baode Heat Exchangers
0 Units in Stock
$297.08
 Sold Out



SOL-SP-155K Pool Heat Exchanger - Stainless Steel





155K solar pool heat exchanger



SP-155K Pool and Hot Tub Heat Exchanger. Featuring high efficiency Heat Transfer Capabilities. Smooth tube and shell design ensures high velocities inside the heat exchanger maximizing heat transfer. Ideal for solar applications for pools, hot tubs, hydronic heating and snow melt applications.





Advantages:

• High efficiency,coefficient up to 10000 w/m2 deg C,Heat exchanging capacity 3-7 times traditional equipments.
• Compact configuration, occupy small area, one tenth as the traditional equipments.
• Stainless steel and/or titanium, material, endure high temperature, pressure and minimum corrosion.
• Helix screw thread elasticity heat exchange bundle, eliminate the stress.
• ASME standard VIII-1
• Large flow volume with minimal pressure drop
• Easy installation and durable



Features:

Material: All stainless steel 316L
Design Temperature: 208 C (406 F)
Heat transfer area : 3.55 square feet
Fittings: 1 1/2"" pool side | 1" solar/boiler side
Normal working capacity: 155,000 BTU/hr (45 Kw/hr)
Dimensions 3" x 17.75"
Weight: 6.5 LBS





Pool Exchanger Design

solar pool heat excahnger side viewinternal view of pool heat exchanger

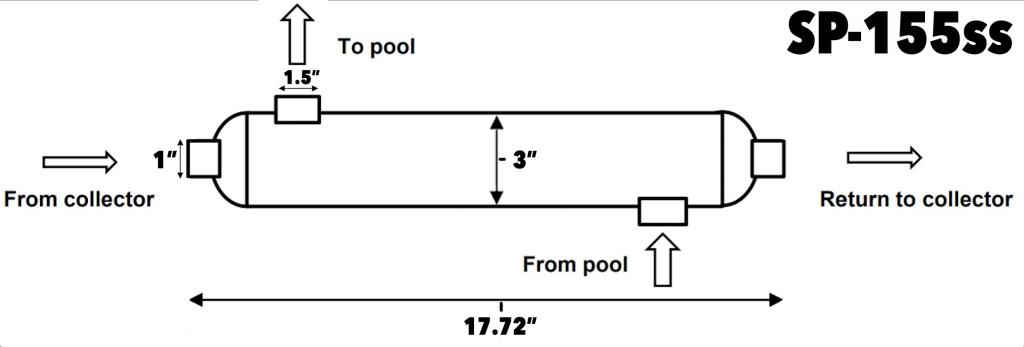

specs on 155 KBTU pool heat exchanger

The helical tube bundles are available in both Titanium and 316L Stainless Steel. Stainless steel tube bundles should not be used in applications that involve high levels or sea/saltwater. The Titanium tube bundles are recommended in these cases.

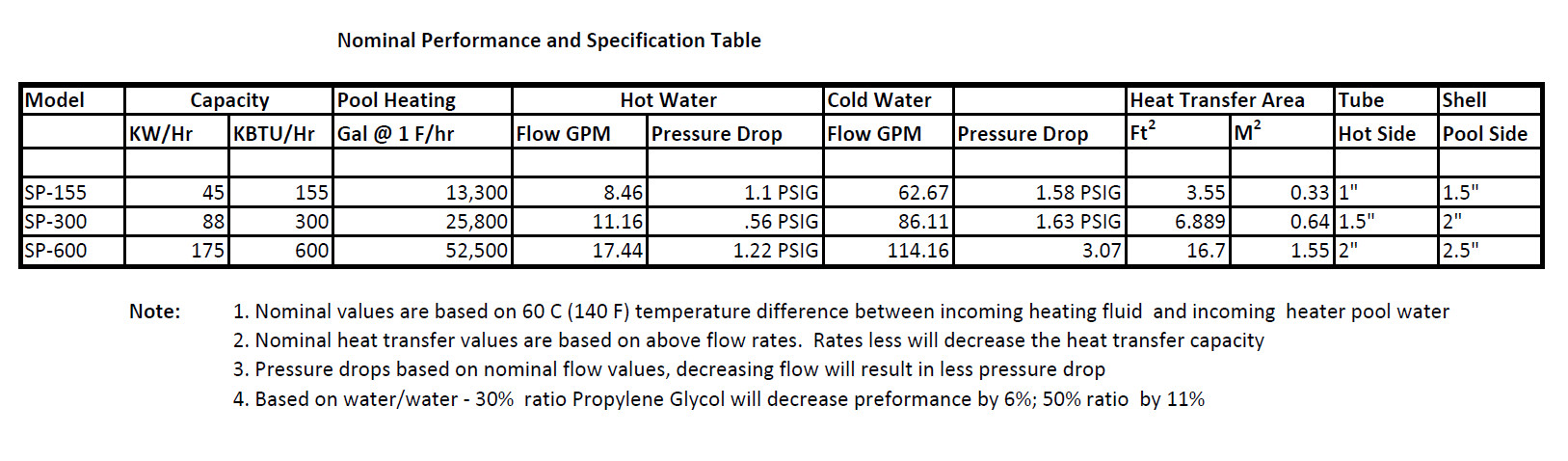

Operating Specifications for Solar Pool Heat Exchangers





Applications

  • SP 155K is a smaller solar pool heat exchanger that is typically used in conjunction with an existing pool heater and solar.  This unit will do a good job of maintaining the water temperatures initially supplied by an auxiliary heat source such as a gas heater.  Total Heat exchange surface area is .33 M2 (3.55 ft2)

  • SP 300K is a larger pool heat exchanger that can be used with a larger solar system and other heat sources as the primary heat source.  Sizing the pool collectors is important for proper operation of a solar pool heater.  Total Heat exchange surface area is .64 M2 (6.9 ft2)



  • SP 600K is an x-large or commercial pool heat exchanger that can be used with a larger solar system and other heat sources as the primary heat source.  Sizing the pool collectors is important for proper operation of a solar pool heater.  Total Heat exchange surface area is 1.5 M2 (17.6 ft2)





Add Heat Exchangers in Series to Expand System Sizing for Larger Pools

multiple pool heat exchangers
