Solar Pool Heat Exchanger- Stainless Steel - 600K

$563.90

Sold Out
Ask a question

SOL-SP-600K Pool Heat Exchanger - Stainless Steel

commerical pool heat exchanger

Alpha SP-600K Pool and Hot Tub Heat Exchanger. Featuring high efficiency Heat Transfer Capabilities. Smooth tube and shell design ensures high velocities inside the heat exchanger maximizing heat transfer. Ideal for solar applications for pools, hot tubs, hydronic heating and snow melt applications.





Advantages:

  • High efficiency,coefficient up to 14000 w/m2 deg C,Heat exchanging capacity 3-7 times traditional equipments.
  • Compact configuration, occupy small area, one tenth as the traditional equipments.
  • Stainless steel and/or titanium, material, endure high temperature, pressure and minimal corrosion.

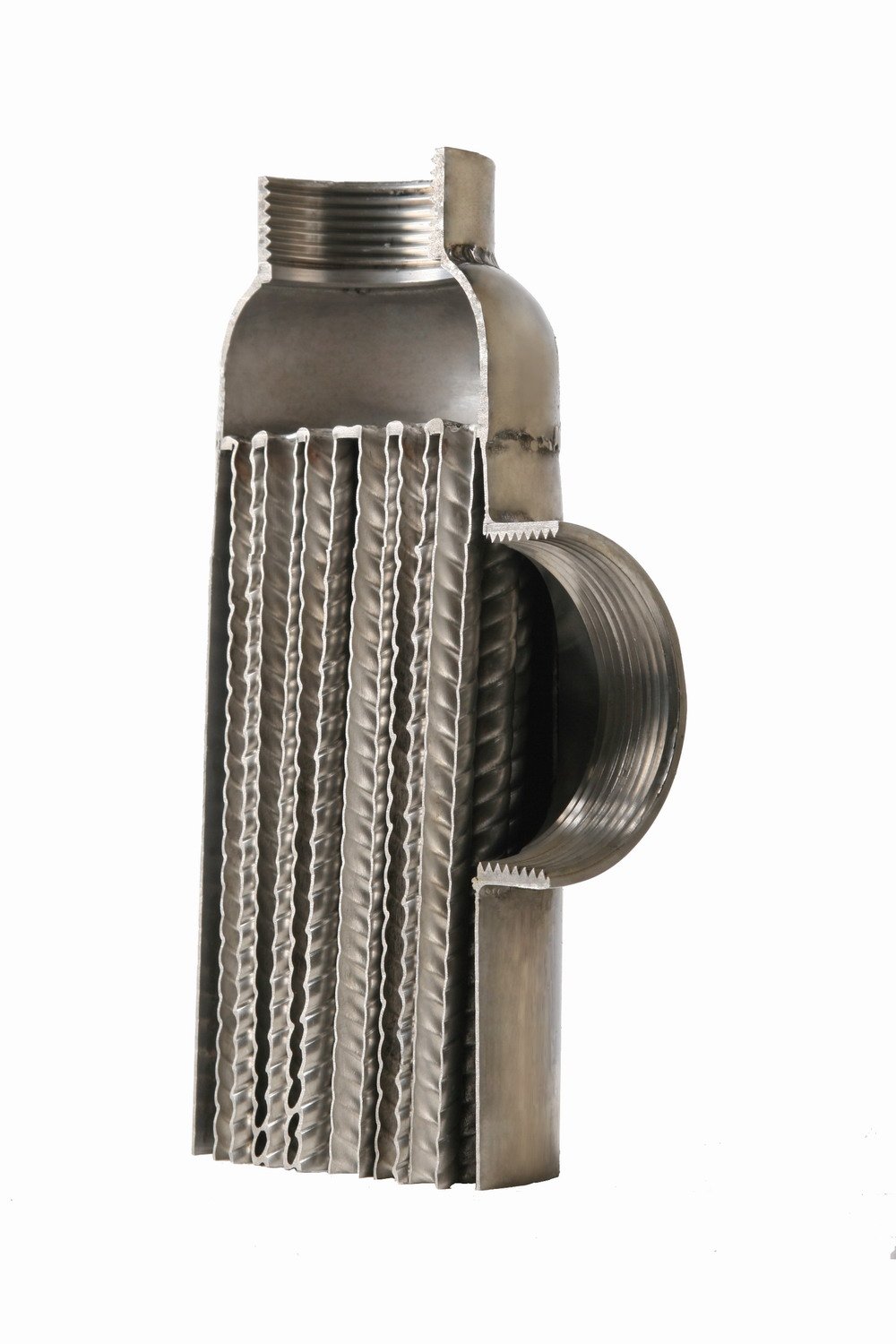

  • Helix screw thread elasticity heat exchange bundle, eliminate the stress.
  • ASME standard VIII-1
  • Large flow volume with minimal pressure drop
  • Easy installation and durable



Features:

  • Material: All stainless steel 316L
  • Design Temperature: 208 C (406 F)
  • Heat transfer area : 16.7 square feet
  • Fittings: 2.5" pool side | 2" solar/boiler side
  • Normal working capacity: 600,000 BTU/hr (175Kw/hr)
  • Dimensions: 4.5" x 35.4"
  • Weight 24.5 LBS

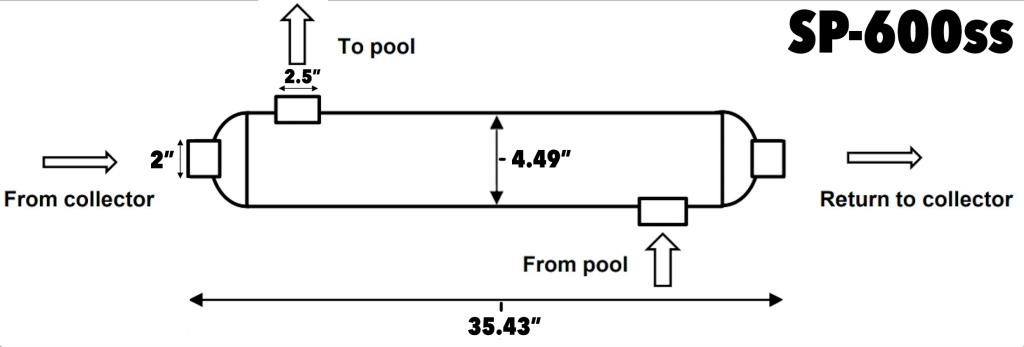

Pool Exchanger Design

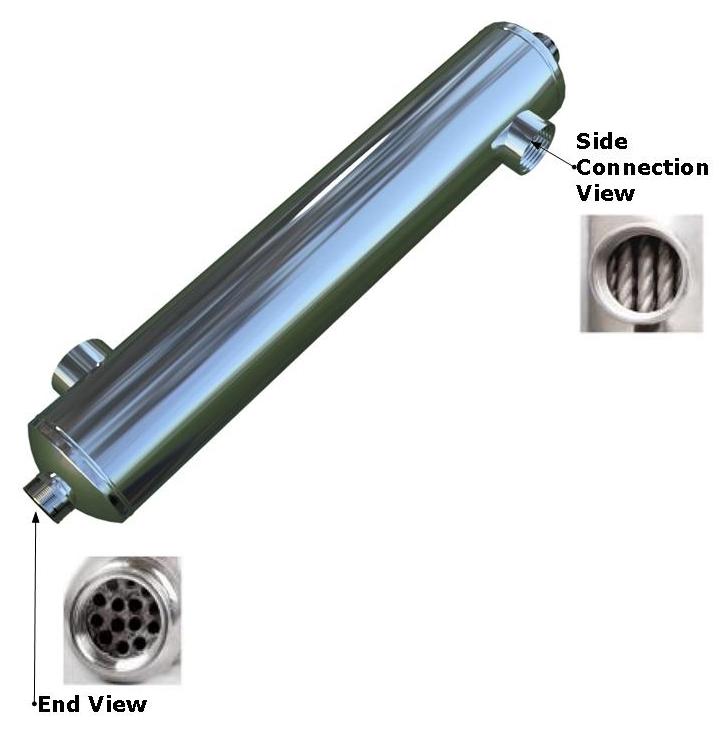

600 K commerical solar pool heat excahnger side viewcommercial solar titanium exchanger





commercial swimming pool heat exchanger specifications



heat exchanger for swimming pool specifications table



The helical tube bundles are available in both Titanium and 316L Stainless Steel. Stainless steel tube bundles should not be used in applications that involve high levels or sea/saltwater. The Titanium tube bundles are recommended in these cases.





Applications

  • SP 155K is a smaller solar pool heat exchanger that is typically used in conjunction with an existing pool heater and solar.  This unit will do a good job of maintaining the water temperatures initially supplied by an auxiliary heat source such as a gas heater.  Total Heat exchange surface area is .33 M2 (3.55 ft2)

  • SP 300K is a larger pool heat exchanger that can be used with a larger solar system and other heat sources as the primary heat source.  Sizing the pool collectors is important for proper operation of a solar pool heater.  Total Heat exchange surface area is .64 M2 (6.9 ft2)



  • SP 600K is an x-large commercial pool heat exchanger that can be used with a larger solar system and other heat sources as the primary heat source.  Sizing the pool collectors is important for proper operation of a solar pool heater.  Total Heat exchange surface area is 1.5 M2 (17.6 ft2)





Add Heat Exchangers in Series to Expand System Sizing for Larger Pools

multiple pool heat exchangers for commercial pools
