SOL-SP-300K Pool Heat Exchanger - Titanium

SP-300K Pool and Hot Tub Heat Exchanger. Featuring high efficiency Heat Transfer Capabilities. Smooth tube and shell design ensures high velocities inside the heat exchanger maximizing heat transfer. Ideal for solar applications for pools, hot tubs, hydronic heating and snow melt applications.

Advantages:

• High efficiency coefficient up to 10000 w/m2 deg C - Heat exchanging capacity 3-7 times traditional equipment.
• Compact configuration, occupy small area, one tenth as the traditional equipment.
• Stainless steel and/or titanium, material, endure high temperature, pressure and minimal corrosion.
• Helix screw thread elasticity heat exchange bundle, eliminate the stress.
• ASME standard VIII-1
• Big flow volume with minimal pressure drop
• Easy installation and durable

Features:

• Material: Titanium for Salt Water Pools
• Design Temperature: 208 C (406 F)
• Heat transfer area : 6.9 square feet
• Fittings: 2" pool side | 1 1/2" solar/boiler side
• Normal working capacity: 300,000 BTU/hr (88 Kw/hr)

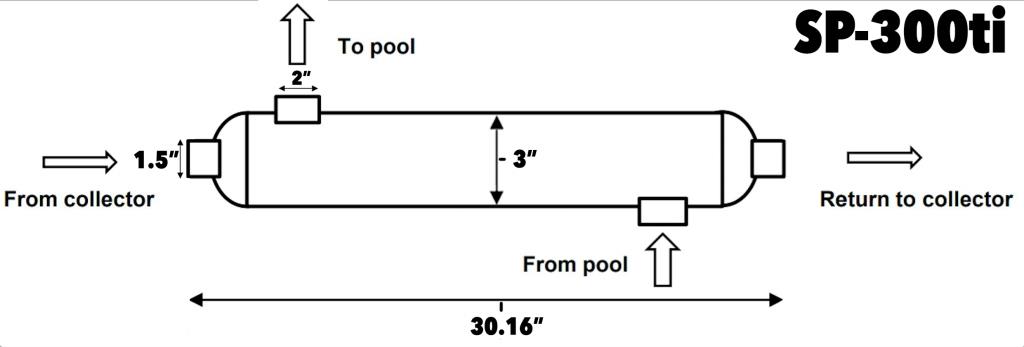

• Dimensions 3" x 30.7"

  Weight: 11.6 LBS

Pool Exchanger Design

The helical tube bundles are available in both Titanium and 316L Stainless Steel. Stainless steel tube bundles should not be used in applications that involve high levels or sea/saltwater. The Titanium tube bundles are recommended in these cases.

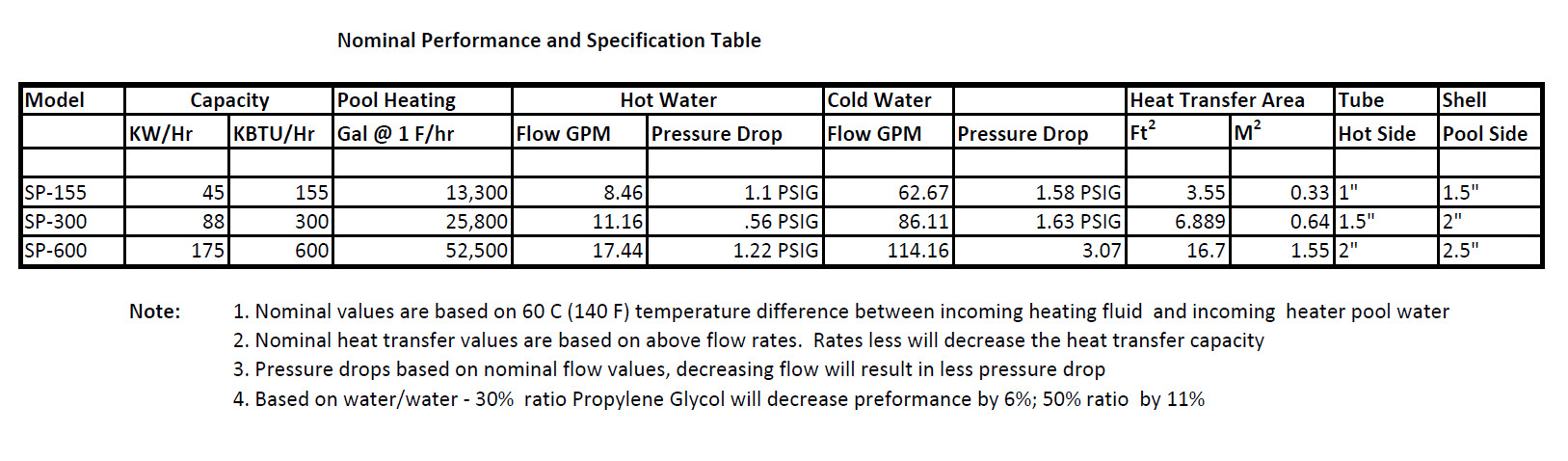

Operating Specifications for Solar Pool Heat Exchangers

Applications

• SP 155K is a smaller solar pool heat exchanger that is typically used in conjunction with an existing pool heater and solar.  This unit will do a good job of maintaining the water temperatures initially supplied by an auxiliary heat source such as a gas heater.  Total Heat exchange surface area is .33 M² (3.55 ft²)

• SP 300K is a larger pool heat exchanger that can be used with a larger solar system and other heat sources as the primary heat source.  Sizing the pool collectors is important for proper operation of a solar pool heater.  Total Heat exchange surface area is .64 M² (6.9 ft²)

• SP 600K is an x-large  pool heat exchanger that can be used with a larger solar system and other heat sources as the primary heat source.  Sizing the pool collectors is important for proper operation of a solar pool heater.  Total Heat exchange surface area is 1.5 M² (17.6 ft²)

Add Heat Exchangers in Series to Expand System Sizing for Larger Pools
